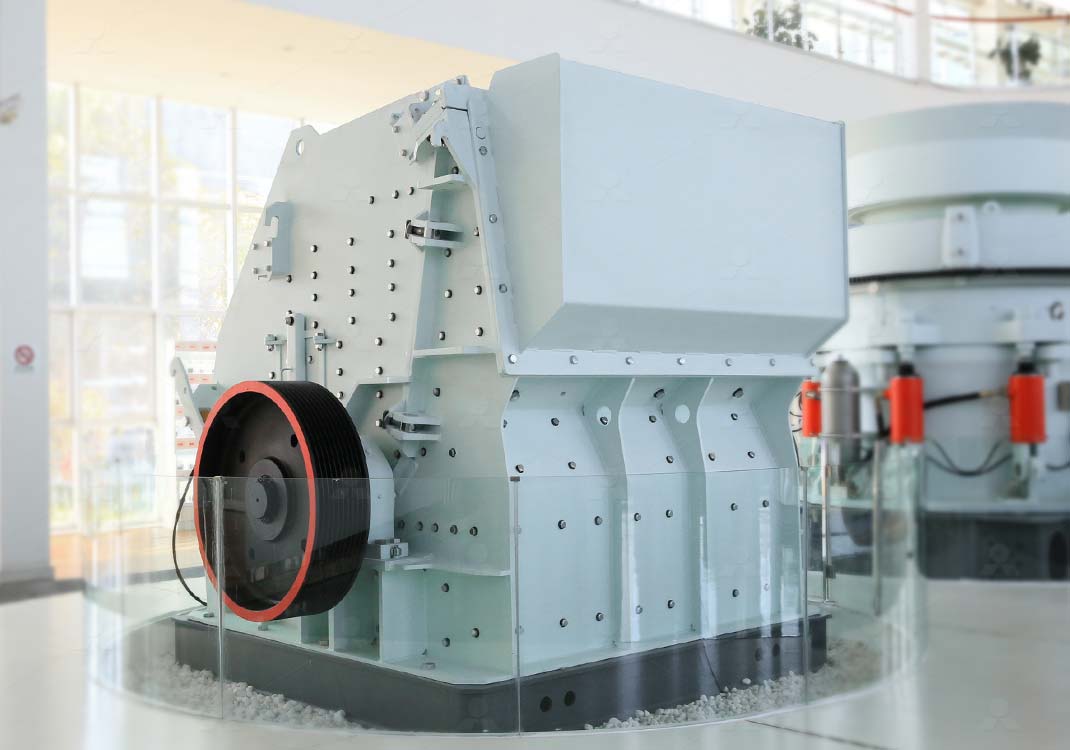

CI5X impact crusher

Short Description:

The CI5X Impact Crusher is a new product developed by Liming Heavy Industry. This machine incorporates advanced technologies, including a high-precision rotor, a multifunctional hydraulic operating system, and an efficient involute crushing chamber, all of which contribute to helping clients achieve greater profitability.

Application: Mining, metallurgy, construction, chemical, cement, refractory material, etc.
Advantages: ANSYS, Famous bearing, Wear-resisting materials

Send email to us Download as PDF

Product Details

Get Quotation

Working Principle
The CI5X Series Impact Crusher utilizes striking energy to crush materials. When in operation, the motor drives the rotor at high speed, with blow bars installed on it. As the material enters the impact zone of the blow bars, it is struck and thrown towards the impact devices surrounding the rotor. The high-speed impact forces the material to rebound off the impact liner and return to the area affected by the blow bars, where it is further crushed to the desired size. The gap between the impact rack and the rotor can be adjusted to control the size and shape of the final product.

Specifications - Technical Data

Model	Specifications(mm)	Feed opening(mm)	Max feed size(mm)	Capacity(t/h)	Power(kw)
CI5X1110	1100×1000	1020×820	500	150-200	160-200
CI5X1213	1200×1300	1320×880	550	200-300	200-250
CI5X1315	1300×1500	1540×930	600	250-350	250-315
CI5X1520	1500×2000	2040×995	400	400-600	400-500
CI5X1524	1500×2400	2516×767	400	500-700	560-630
CI5X1630	1600×2700	2740×787	400	600-900	710-800
CI5X1313	1300×1300	1320×1225	800	300-450	200-250
CI5X1415	1400×1500	1540×1320	900	350-550	250-315
CI5X1620	1600×2000	2040×1630	1100	500-900	400-500
CI5X2023	2000×2300	2310×1990	1300	1200-2000	1000-1260
