1. Features of F5X Vibrating Feeder

• High vibration intensity and efficient screening

• Simple adjustment with a broad range of applications

• Reliable EV Series vibration exciter

• Anti-blocking bars with a robust design

• Feed box with increased capacity for materials

• Adjustable silo pressure through variable spring numbers at the inlet

• Unique motor cabinet structure for improved stability

2. Working Principle

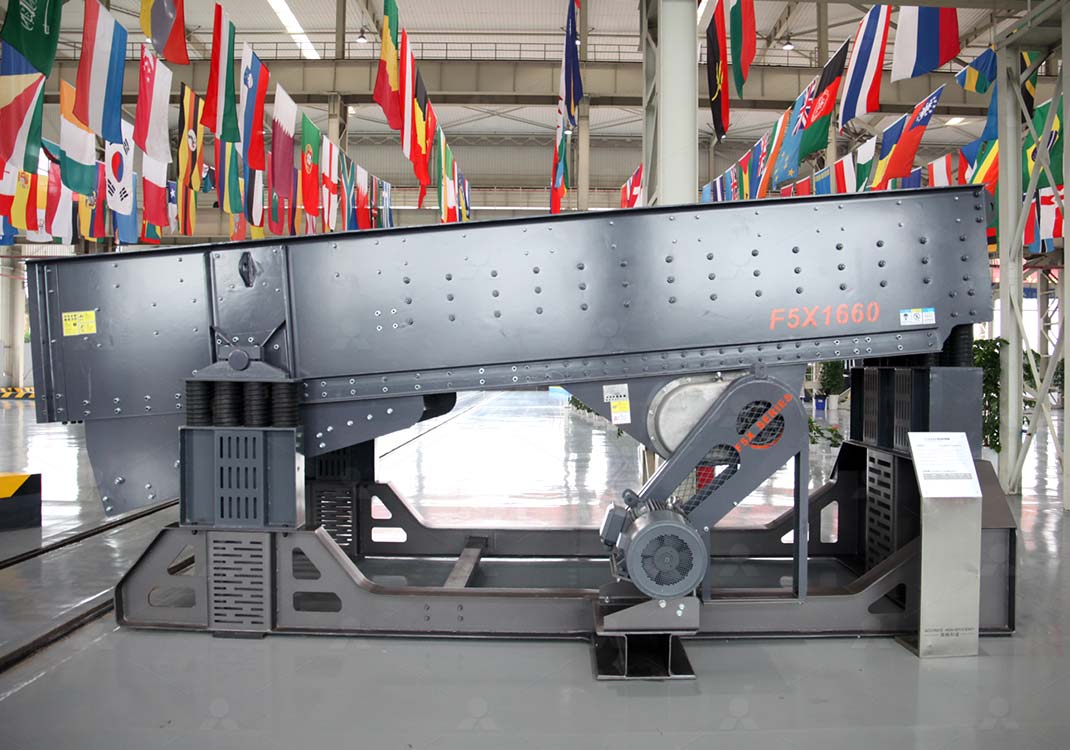

The F5X Series Vibrating Feeder utilizes a dual eccentric shaft exciter to generate excitation force. A gear pair links the two eccentric shafts, causing them to rotate in opposite directions at the same speed. Driven by the motor, this excitation force moves the material along the feeder’s groove with a sliding and bouncing motion. As materials pass through the feeder’s grid bars, smaller particles fall through the gaps and proceed to the next crushing stage. This setup allows the feeder to pre-screen materials, enhancing the crushing plant's overall efficiency and capacity.
