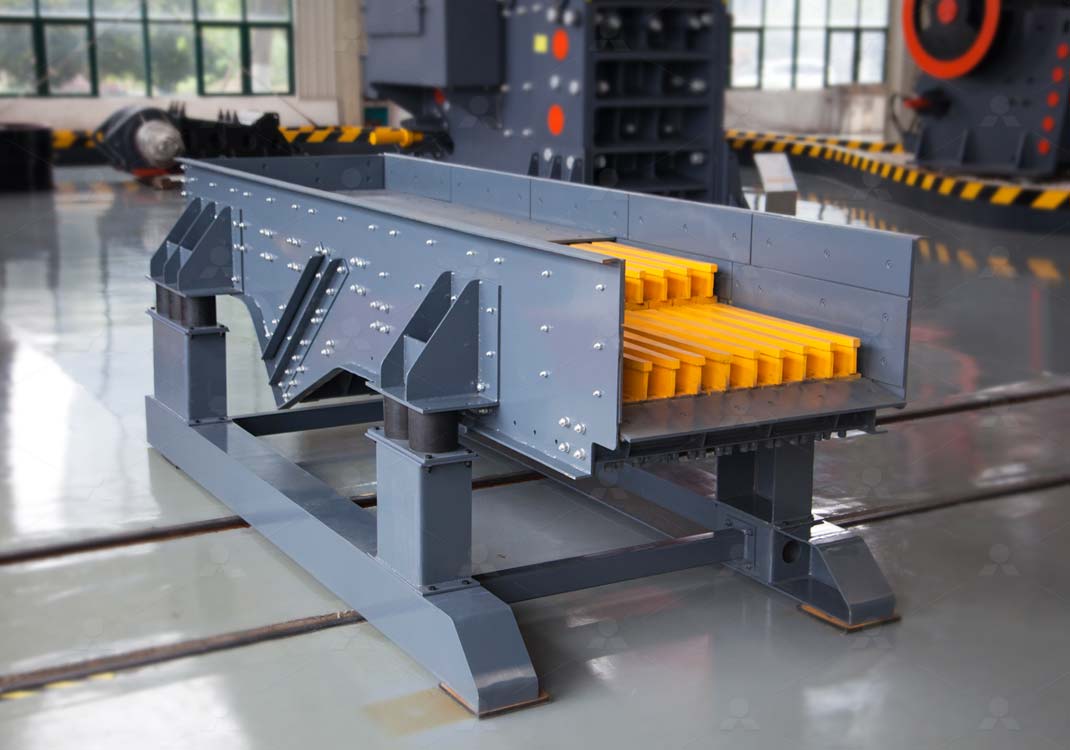

GF vibrating feeder
Working Principle
The GF Series Vibrating Feeder is powered by a vibrating motor, which moves the material gradually and evenly from the input to the output. During this process, the material is also screened by the grizzly bars to ensure more uniform stone distribution.
Specifications - Technical Data
| Model | Feeding Chute Size （mm） |
Max Feeding Size （mm） |
Max Capacity （t/h） |
Power KW （HP） |
Overall Dimension(LxWxH) （mm） |
Weight （t） |
| GF0942 | 900×4200 | 500 | 280 | 2×3.7(5) | 4200×1520×1480 | 3 |
| GF0942M | 900×4200 | 500 | 280 | 2×3.7(5) | 4200×1520×1480 | 3 |
| GF0942S | 900×4200 | 500 | 280 | 2×3.7(5) | 4200×1520×1480 | 3.3 |
| GF1245 | 1200×4500 | 700 | 450 | 2×7.5(5) | 4650×1870×1555 | 4.6 |
| GF1245M | 1200×4500 | 700 | 450 | 2×7.5(5) | 4650×1870×1555 | 4.6 |
| GF1245S | 1200×4500 | 700 | 450 | 2×7.5(5) | 4650×1870×1555 | 4.9 |
