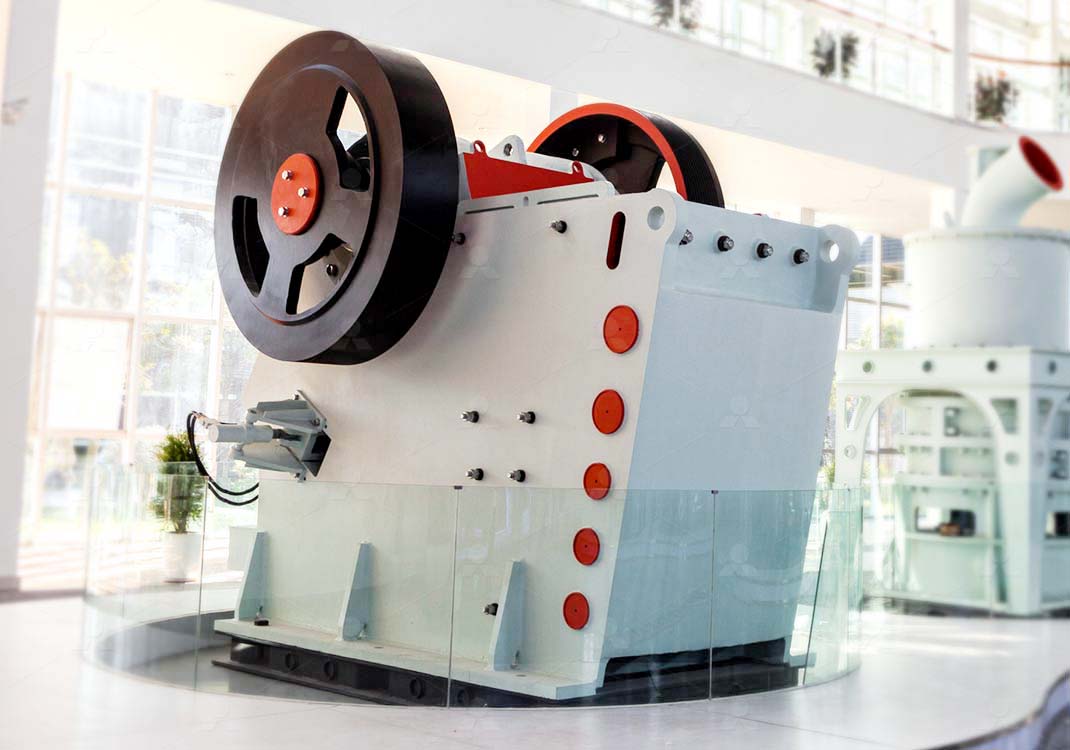

PEW jaw crusher
Working Principle
The European-type Jaw Crusher operates on a dynamic squeeze principle. The motor drives the belt and pulley, causing the movable jaw to move back and forth, up and down, via the eccentric shaft. As the movable jaw moves towards the fixed jaw, raw material is either crushed or split. When the movable jaw moves back, driven by the eccentric shaft and spring, the crushed material is discharged through the bottom outlet. With continuous rotation of the motor, the movable jaw periodically crushes and discharges material, ensuring efficient bulk production.
Specifications - Technical Data
| Model | Feed opening (mm) |
Maximum feed size(mm) |
CSS min-max (mm) |
Capacity (tph) |
Power KW(HP) |
Dimension (L×W×H) (mm) |
Weight (t) |
| PEW200×1300 | 200X1300 | 150 | 10-30 | 12-35 | 30(40) | 1320X2150X1176 | 6 |
| PEW250×1000 | 250X1000 | 220 | 20-40 | 15-50 | 30(40) | 1400X1850X1310 | 6 |
| PEW250×1200 | 250X1200 | 220 | 20-40 | 20-50 | 37(50) | 1450X2150X1175 | 7 |
| PEW400×600 | 400X600 | 350 | 35-85 | 15-70 | 37(50) | 1920X1460X1840 | 7.5 |
| PEW760 | 760X1100 | 620 | 75-200 | 150-350 | 110(150) | 2950X2360X2760 | 24 |
| PEW860 | 840X1100 | 720 | 100-225 | 200-500 | 132(175) | 3300X2320X3120 | 32 |
| PEW1100 | 1100X1200 | 940 | 150-275 | 300-650 | 185(250) | 4140X2660X3560 | 59.2 |
Notice:
1. Any change of European Type Jaw Crusher technical data shall not be advised additionally.
2. The Model PEW860 and PEW1100 with lubrication station and hydraulic adjustment station.
